Domestic Sand Filters
- Sand Filters Manual
- Sand Filters Automatic
Sand Filters Manual
Sand Filters Manual
Sprinkle SF 3M
Specifications
Price: 38,400/-
Vessel Size: 13*54
MPV Size and Mounting: 25NB Top
Silex: 25
Core: 25
Fine: 25
Maximum Flow(*1000 Ltrs/Hr): 3
MPV Type: Manual
Max Operating Pressure: 3.5 BAR

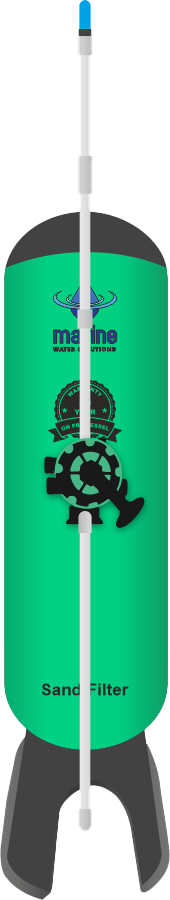

Sprinkle SF 6M
Specifications
Price: 53,500/-
Vessel Size: 16*65
MPV Size and Mounting: 40NB Side
Silex: 50
Core: 50
Fine: 25
Maximum Flow(*1000 Ltrs/Hr): 6
MPV Type: Manual
Max Operating Pressure: 3.5 BAR

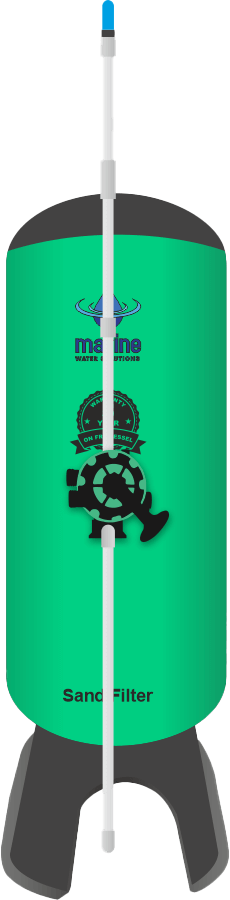

Sprinkle SF 9M
Specifications
Price: 72,300/-
Vessel Size: 21*62
MPV Size and Mounting: 40NB Side
Silex: 75
Core: 75
Fine: 50
Maximum Flow(*1000 Ltrs/Hr): 9
MPV Type: Manual
Max Operating Pressure: 3.5 BAR

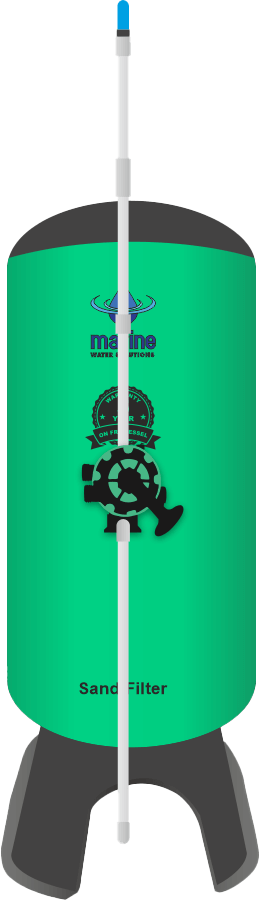

Sprinkle SF 14M
Specifications
Price: 1,21,000/-
Vessel Size: 24*72
MPV Size and Mounting: 40NB Side
Silex: 100
Core: 75
Fine: 75
Maximum Flow(*1000 Ltrs/Hr): 14
MPV Type: Manual
Max Operating Pressure: 3.5 BAR
Sand Filters Automatic
Sand Filters Automatic

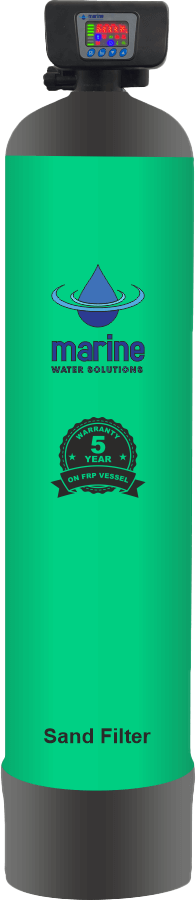

Sprinkle SF 3A
Specifications
Price: 60,900/-
Vessel Size: 13*54
MPV Size and Mounting: 25NB Top
Silex: 25
Core: 25
Fine: 25
Maximum Flow(*1000 Ltrs/Hr): 3
MPV Type: Automatic
Max Operating Pressure: 3.5 BAR

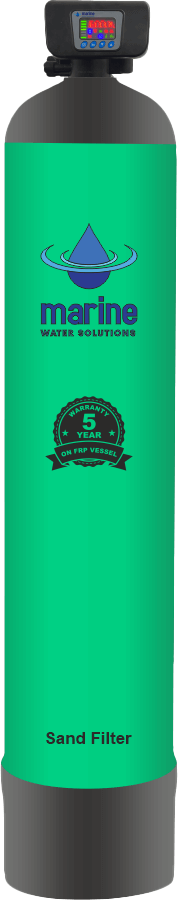

Sprinkle SF 6A
Specifications
Price: 89,000/-
Vessel Size: 14*65
MPV Size and Mounting: 40NB Top
Silex: 50
Core: 50
Fine: 25
Maximum Flow(*1000 Ltrs/Hr): 6
MPV Type: Automatic
Max Operating Pressure: 3.5 BAR

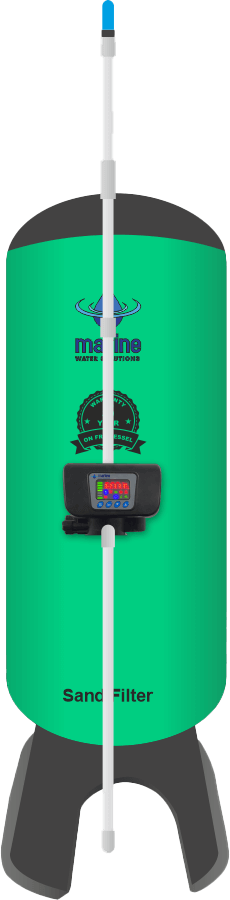

Sprinkle SF 9A
Specifications
Price: 1,14,900/-
Vessel Size: 21*62
MPV Size and Mounting: 40NB Side
Silex: 75
Core: 75
Fine: 50
Maximum Flow(*1000 Ltrs/Hr): 9
MPV Type: Automatic
Max Operating Pressure: 3.5 BAR
Sprinkle SF 14A
Specifications
Price: 1,49,700/-
Vessel Size: 24*72
MPV Size and Mounting: 40NB Side
Silex: 100
Core: 100
Fine: 75
Maximum Flow(*1000 Ltrs/Hr): 14
MPV Type: Automatic
Max Operating Pressure: 3.5 BAR
Advantages
Various Floating Particles can be Removed
Deforestation, Demagnisation and ammonia can be removed
Reduction of Protozoa
Easy to operate and low maintenance requirements
Effective removal and long lifetime
Why do we need a sand filter?
We need a water sand filter to remove impurities and particles from water. Sand filters are commonly used in Homes, swimming pools, aquariums, and wastewater treatment systems to clean and purify water. The filter consists of a layer of sand that acts as a physical barrier, trapping dirt, debris, and other contaminants as water passes through. Sand filters are effective at removing organic matter, sediment, and some types of bacteria and viruses. They can improve the taste and clarity of water, making it safe and enjoyable to drink or use for other purposes. Additionally, sand filters are relatively low-maintenance and cost-effective, making them a popular choice for water filtration systems.
How Does Sand Filters Work
A sand filter works in a way that the water flows from top to bottom through a sand bed, sand of a certain particle size is used. The particle size of the sand depends on what people want to remove from the water, it is often seen that different layers are used with different particle size to remove various floating particles. In the sand bed is a porous layer that ensures the operation of the filter. Various physical and biological process can also take place in a sand filter that causes removal of even more components. The removed particles will accumulate in the upper layer of a sand filter and after expiration of time, more pressure will be needed to get the water through the sand filter. In order to prevent a filter from becoming clogged, one will after a while backwash the sand filter, whereby the removed particles are flushed out and the filter can be used again. This back-washing is done by reversing the flow direction of the water.
